32-inch Telescope

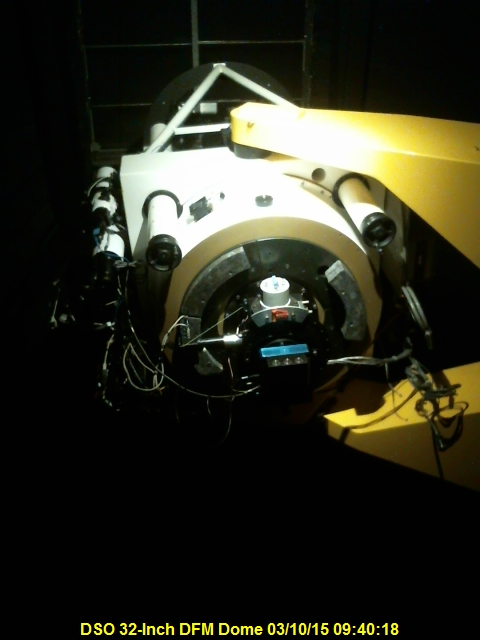

The image at right shows the 32-inch telescope and the dome's slit in the background.

The fork mount extends down to the right and the truss frame "tube" are the white pipes extending, angled upward, where they attach to a support ring that carries the secondary mirror.

At the bottom, there is usually attached some kind of instrument, such as a filter wheel with attached CCD camera (for direct imaging), or a spectrograph (using the same CCD).

The CCD camera is the white cylinder with two greenish tubes attached--these carry coolant that takes heat away from the camera head.
